Designing Facilities for Robotic Automation

Robotic automation is revolutionizing facility design, transforming warehouses and manufacturing plants into high-efficiency hubs. At Rainbow Dynamics, we’ve seen firsthand how integrating advanced systems like the RackBot™ Tote AS/RS and 4D Pallet Shuttle can dramatically enhance operational productivity, storage density, and cost-effectiveness. In collaboration with G2P Robots, we also offer Goods-to-Person (G2P) robotic solutions that bring unparalleled flexibility and ergonomic benefits to fulfillment operations of all sizes.

This blog explores the key elements of designing facilities that seamlessly integrate robotic systems—from layout optimization to infrastructure and automated storage solutions. We'll also delve into strategies for optimizing material flow and warehouse management in automated environments.

How to Design Robot-Friendly Facilities

Optimizing Floor Space and Layout

The first step in creating a robot-friendly facility involves floor space optimization. This means designing wide, unobstructed aisles that allow automated systems to move freely. For example, Rainbow Dynamics' RackBot™ Tote AS/RS thrives in environments with clear, modular layouts that support high-speed tote retrieval and delivery. Complementing this, G2P Robots’ mobile robots are built to operate efficiently in grid-based environments and adapt easily to existing floor plans.

We recommend grid-based layouts for enhanced robot navigation and storage density. This configuration can increase usable storage space by up to 40% over traditional layouts.

Addressing Ceiling Height and Structural Support

Robotic automation systems like our 4D Pallet Shuttle often require taller buildings and reinforced flooring. Aim for ceiling heights of at least 40 feet to accommodate vertical systems and consider floor load capacities of at least 1,000 pounds per square foot in high-density areas.

These design elements future-proof your facility while ensuring it can support heavier, multi-level AS/RS equipment.

Power and Connectivity Infrastructure

A robust power and connectivity infrastructure is essential for robotic automation. Most Rainbow Dynamics systems require 480V three-phase power, and we advise oversizing electrical capacity by 20% to allow for future system expansion.

Reliable Wi-Fi or mesh networks are crucial for real-time data transmission. In high-throughput environments, 5G integration ensures ultra-low latency communication for coordinated system performance. G2P Robots also benefit from strong network infrastructure, especially in dynamic picking environments.

Ensuring Safety in Human-Robot Interaction Areas

Safety is paramount when humans and robots coexist. Rainbow Dynamics incorporates safety barriers, pressure-sensitive mats, and photo-eye sensors to ensure safe operation. G2P Robots feature intelligent obstacle detection and real-time path recalculation to safely navigate alongside human workers. Intuitive traffic flows and clear floor markings further support safe interactions between personnel and machines.

How Automated Storage Systems Revolutionize Your Facility

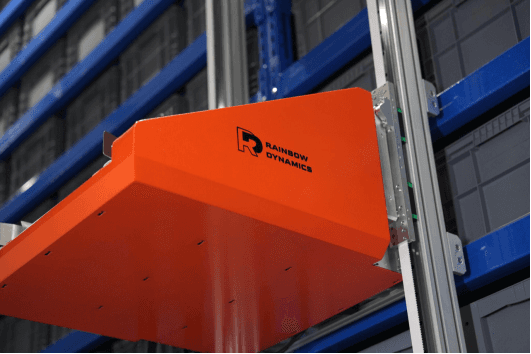

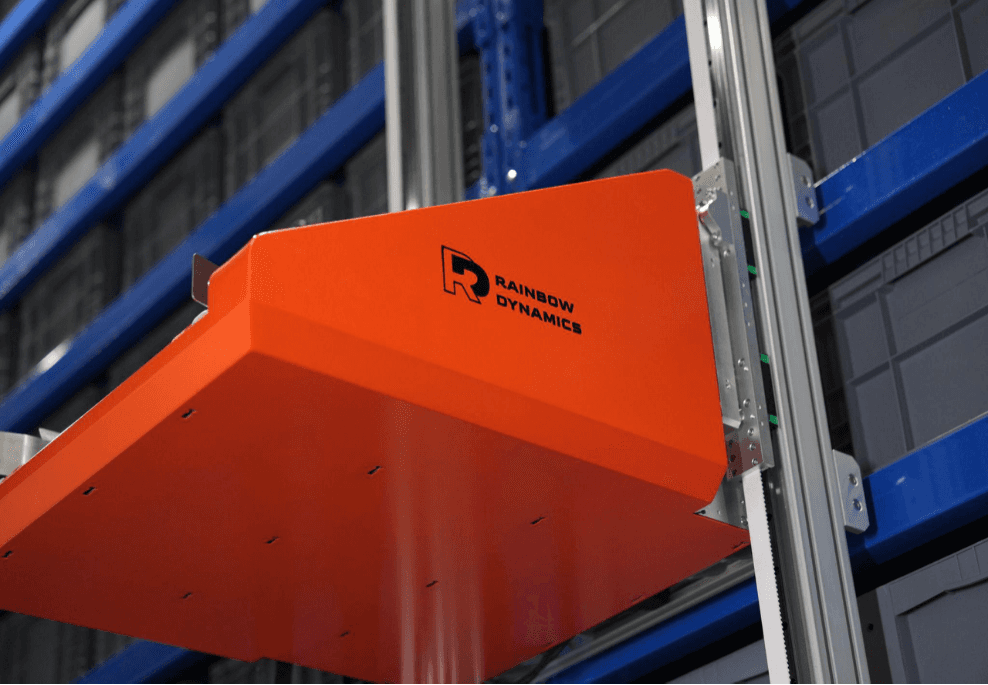

Maximizing Vertical Space with RackBot™ Tote AS/RS

The RackBot™ system is designed to maximize storage density by accessing totes stored in multi-level racking. For facilities exploring additional vertical storage solutions like Vertical Lift Modules (VLMs), Vertical Storage USA offers systems that complement robotic automation while reclaiming valuable floor space. It reduces reliance on wide aisles and allows facilities to scale vertically without major infrastructure changes.

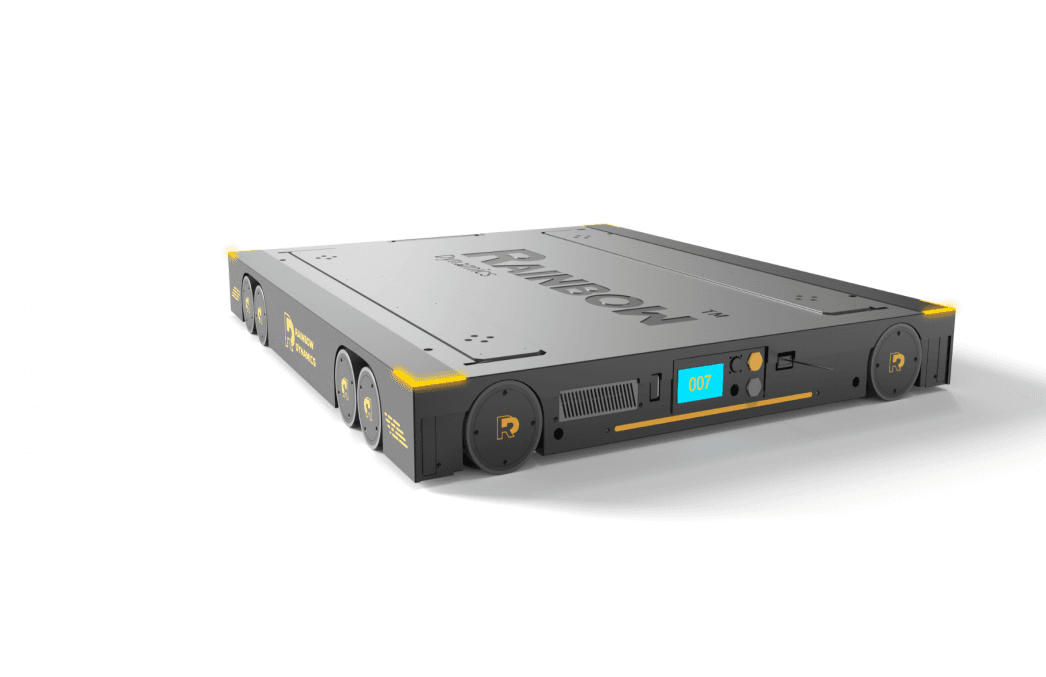

High-Throughput Pallet Handling with 4D Pallet Shuttle

For facilities with high-volume pallet movement, our 4D Pallet Shuttle provides flexible access to every pallet location across multiple levels. Its four-directional movement minimizes travel time and maximizes throughput.

Enhancing Efficiency with Goods-to-Person Robots

G2P Robots' mobile picking robots bring totes or shelves directly to ergonomic workstations, reducing walk time and increasing pick speed. Their systems scale modularly and are ideal for facilities with varied SKU profiles or limited labor availability.

Robotic Sortation Integration

Robotic sortation plays a critical role in modern distribution. By integrating sortation with storage and retrieval, Rainbow Dynamics and G2P Robots help customers achieve seamless order fulfillment while reducing labor and time costs.

Designing for System Integration

System integration is critical for achieving full value from robotic automation. The most efficient systems pair physical automation with advanced warehouse software. Rainbow Dynamics’ and G2P Robots’ solutions are designed with open architecture, enabling seamless integration with WMS, ERP, and analytics platforms.

This real-time coordination enables predictive maintenance, efficient inventory control, and optimized material handling paths.

Optimizing Material Flow in Automated Warehouses

Streamline Pick Paths and Workstations

Material flow optimization includes designing efficient pick paths and ergonomic workstations. With systems like RackBot™ and G2P Robots’ autonomous mobile robots, goods are brought directly to pick stations, minimizing worker travel and improving speed.

Strategically designed workstations also reduce strain and improve order accuracy, creating a safer, faster picking environment.

Real-Time Inventory Tracking

Rainbow Dynamics systems integrate seamlessly with real-time tracking tools, including RFID and barcode systems. This ensures up-to-date visibility across storage, retrieval, and shipping, reducing errors and stockouts.

Flexible Material Handling Solutions

Rainbow Dynamics and G2P Robots support flexible robotic automation with modular systems like mobile robots and tote conveyors that adapt to changing layouts and seasonal peaks. These scalable solutions work in tandem with both people and automation.

Choosing the Right Automation Partner

Partnering with Rainbow Dynamics means more than just acquiring cutting-edge technology—it means gaining a strategic partner with global experience in robotic automation. Our AS/RS systems, including the RackBot™ and 4D Pallet Shuttle, are deployed in facilities worldwide. When paired with G2P Robots' industry-leading mobile robot solutions, you gain a complete, future-ready automation ecosystem.

Final Thoughts

Robotic automation requires a holistic approach to facility design. From power infrastructure and ceiling height to optimized workflows and integration-ready storage systems, your facility must be built for flexibility and growth.

At Rainbow Dynamics, we design and deliver intelligent automation systems that evolve with your business. In collaboration with G2P Robots, we offer scalable, modular solutions that future-proof your operation, enhance safety, and maximize productivity. As robotic automation reshapes warehousing and manufacturing, we’re here to help you lead the transformation.
